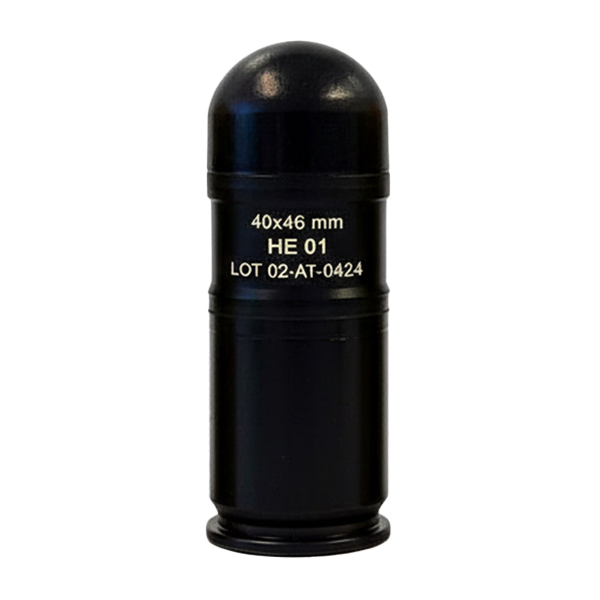

HE 01

High explosive anti-personnel

Specifications

Country of origin

Croatia

Total height

106 mm

Body diameter

40 mm

Total weight

238 g

Projectile weight

189 g

Fuze

URJ - 004

Arming of the fuze

Inertial and centrifugal force, with misaligned fire train

Arming distance

10 - 18 m

Explosive

RDX

Explosive Weight

45 g

Fragments Weight and quantity

45 + 9 g > 400

Lethal radius

5 m

Range

375 (400) m

Velocity

76 m/s

Penetration

10 mm steel plate

Precision

100 m distance, min 12 grenades from 15 shoots must be in target 1x1 m

Malfunction

2/100 acceptance

Temp.range

-30 to +50 ˚C (in special case, it is possible to change distance, on buyer request)

Class

1.2 E

Colour, painting

Black / gold

Markings

Yellow painting type, Model No., Lot, year and month of production, producer

Employment

40 mm RBG-6, MGL-6, M79, M203, RBG-1, EX41, HK69A1, HK79

Guarantee

1 year

Shelf life

10 years

Technical Tests

Factory certified in English language presented with certify by specialities: fragmentation, penetration, vibration, centrifugal safety, salt leakage, extreme temp. function, drop test, arming/non arming, target precision, range

Packing

Metal box per 50 pieces, each in plastic tube container
